ZTEC P Series Filter Cartridges

PES (Polyethersulfone) Filter Cartridge for sterile Filtration

ZTEC P Sterilizing Grade membrane cartridges are validated for complete bacterial retention to yield product sterility in biopharmaceutical final filtration applications. The naturally hydrophilic and low protein binding characteristics of polyethersulfone membrane ensure maximum transmission of active ingredients making it ideal for a wide range of pharmaceutical and biological liquid applications, including the filtration of therapeutics, vaccines, antibiotics, bulk pharmaceutical and other critical biotechnology products. The double-layer PES 0.2 micron membrane filters are manufactured in a cleanroom environment, and integrity tested before shipment to assure consistent performance and quality.

Download Brochure

Authorised Dealer Of Graver Technologies, USA

Features and Benefits
Certifications
Typical Applications
Product Specifications
Dimensions
Operating Parameters
Performance Specifications

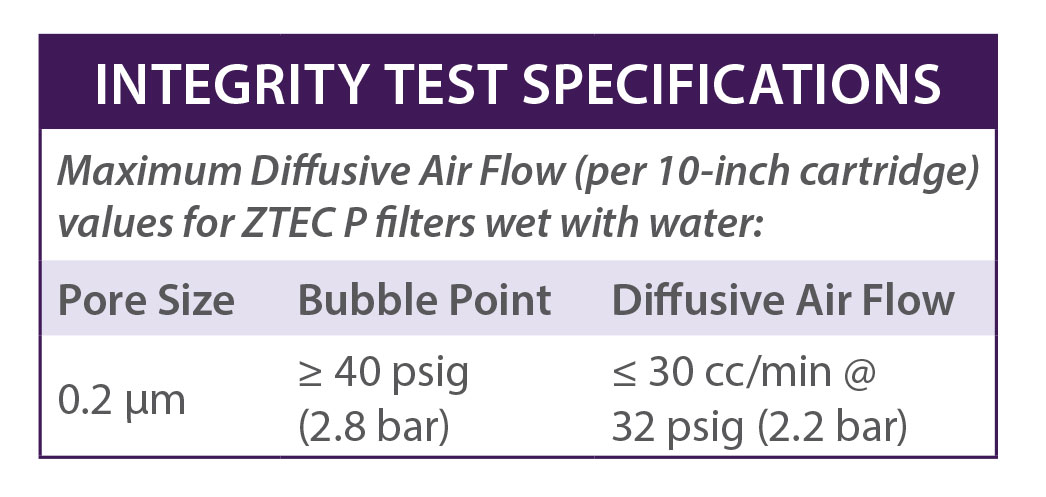

Integrity Specifications

Manufactured in an ISO Class 7 Cleanroom Environment
100% flushed with ultrapure DI water
Meets ASTM Standards for Sterility
Repeatably Steamable/Sanitizable
100% Integrity tested prior to release
Pore size, lot and serial number are stamped on each filter element for identification and traceability
Complete validation guide available

USP Class VI: Meets USP Class VI Biological Test for Plastics
FDA Listed Materials: All materials comply with FDA Title 21 of the Code of Federal Regulations Sections 174.5, 177.1520, and 177.2440 as applicable for food and beverage contact
European Directive for Food Contact: European Regulation No. 1935/2004 and European Regulation 10/2011: Tested for migration behavior and is suitable for contact with all kinds of foodstuffs with minimal rinse-up. Data available upon request.

Diagnostics
Reagent Chemicals
Buffers
Ophthalmic Solutions
LVPs
Vaccines
Culture Media

Media: Asymmetric Polyethersulfone Membrane
Inner core, end caps, cage: Polypropylene
Support layers: Spunbonded Polypropylene
O-Rings: Buna-N, EPDM, Silicone, Teflon Encapsulated Viton O-Rings, Viton
Micron rating: 0.2 μm

Nominal lengths:

10"	20"	30"	40"
25.4	50.8	76.2	101.6 cm

Outside diameter: 2.7" (6.9 cm)
Inside diameter: 1.0" (2.54 cm)
Surface area: 6.8 ft2 (0.63 m2) per 10" element

Maximum sustained operating temperature: 176°F (80°C) at 20 psid (1.38 bar)
Maximum differential pressure:
80 psid @ 70°F (4.14 bar @ 21°C)
40 psid @ 160°F (2.8 bar @ 71°C)
Maximum reverse differential pressure: 40 psid @ 70°F (2.8 bar @ 21°C)
Recommended change-out pressure: 35 psid (2.4 bar)

Hot DI Water: Filter cartridge will withstand temperatures of 185°F (85°C) for up to 30 consecutive minutes.
Cleaning/Sanitization: Compatible with most common chemical cleaning, sanitizing and sterilizing agents and with pH range from 1–14. Consult factory for specific compatibility information.
Steam/Autoclave: Cartridges may be steamed or autoclaved for at least 50 thirty-minute cycles @ 275°F (135°C).
Typical Bacterial Retention Performance: Cartridges have been validated for the complete retention of Brevundimonas diminuta at a challenge level of 107 organisms/cm2 as prescribed in ASTM 838-05.
