TPE Series Filter Cartridges

Stainless Steel Sintered Filter Cartridge

TPE series filters are porous metal filters designed for applications involving heat, gases, aggressive chemicals, cryogenics or polymers. Made from metal powder, that is sintered to form a rugged, fixed pore structure, TPE filters are made to withstand temperature extremes, high pressures and repeated cleaning/backwash cycles. There are no longitudinal seams, for improved mechanical strength and corrosion resistance. TPE filters are produced in a range of configurations and micron ratings to perform in a variety of liquid and gas applications.

  • Constructed entirely of sintered titanium or 316 Stainless Steel powder — offers high corrosion resistance
  • Cleanable / backwashable — allows for re-use, maximum economy
  • High temperature sintering — no media migration, high pressure capabilities
  • Various gasket / O-Ring materials and configurations — easily retrofits most systems
  • Corrosive liquids and gases
  • Cryogenic fluids
  • High viscosity solutions
  • Process steam
  • High temperature liquids and gases
  • Catalyst recovery
  • Media: Titanium, 316 Stainless Steel
  • End caps: Titanium, 316 Stainless Steel
  • Gaskets/O-Rings: Buna-N, EPR, Silicone, Teflon Encapsulated Viton (O-Rings only), Teflon (Gasket only), Viton
  • Micron ratings: 0.5, 1, 5, 10, 15, 35 μm
  • Nominal lengths:
    5" 9.75" 10" 20" 30" 40"
    12.7 24.8 25.4 50.8 76.2 101.6 cm
  • Outside diameter: 2.36" (60 mm)
  • Maximum operating temperature: 700°F (371°C) (threaded connection)
  • Maximum differential pressure:
    250 psid (17.4 bar) forward
    50 psid (3.5 bar) reverse
TPE Series Filter Cartridges

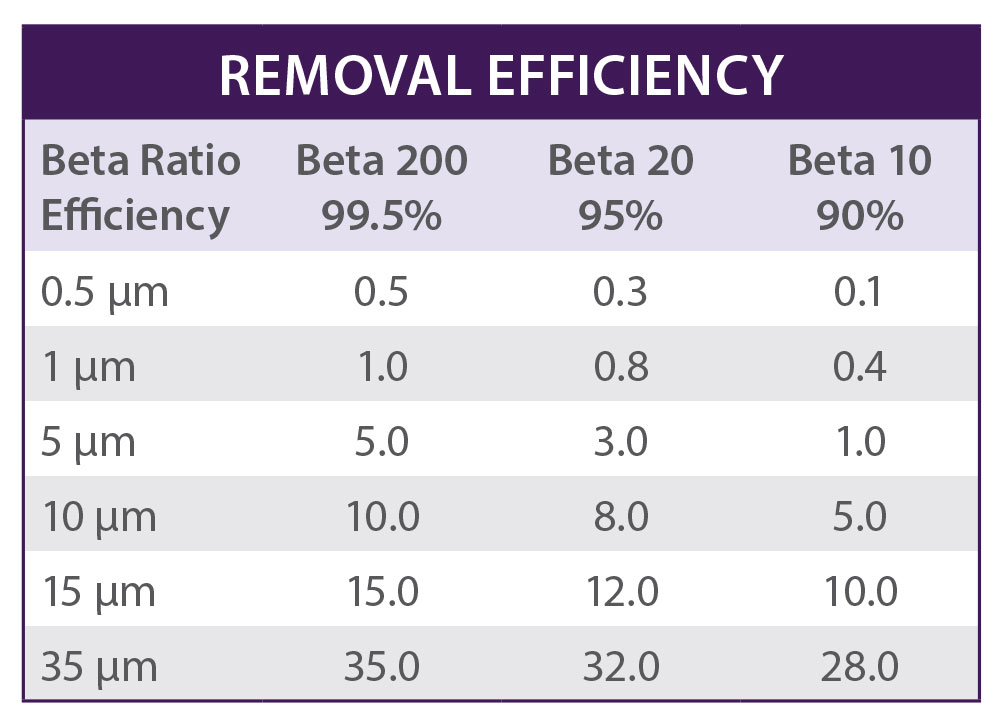

Testing was conducted using the single-pass test method, water at 2.5 gpm/10" cartridge. Contaminants included latex beads, coarse and fine test dust. Removal efficiencies were determined using dual laser source particle counters.

Beta Ratio = Upstream particle counts
Downstream particle counts
