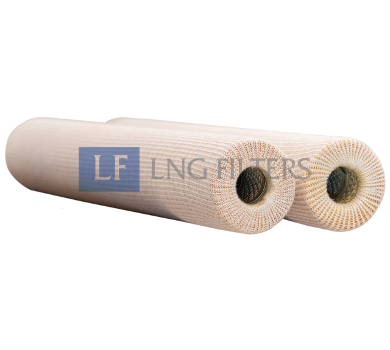

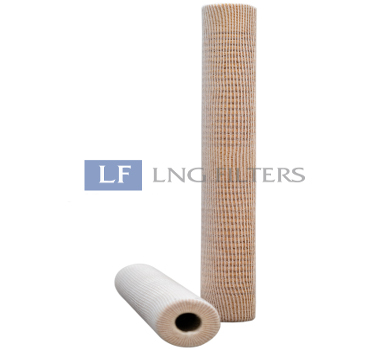

Resin bonded filter cartridges

LNG Filters provide the filter cartridges that are used for filtration of transformer oil. The firm structure and mechanical strength of Resin Bonded Filter Cartridge filter media are bounded by specialty resins to give good mechanical strength against pressure drop. The cartridges are grooved to provide optimum filtration area and to extend the filter life.

Our resin bonded filter cartridge are made from Glassfiber media which is bonded together by a Phenolic resin and erupts as a design where the outer surface restricts large particles and the inner circle holds the ultra-fine impurities. Our filters are manufactured in controlled environment by Graver Technologies in USA. The consistent filter quality is USP of our product.

Manufactured By:
Graver Technologies LLC, USA

  • Density gradient of filter media
  • Rigid resin bonded structure avoid particle unloading under high pressure drop
  • High dirt retention capacity
  • Grooved outer surface increases surface area for longer on-stream life
  • Wide range of removal efficiency from 0.5 to 150 microns
  • Provided with outer cotton wrap to aid in handling and protect the surface
  • Outside diameter: 2.6" (66 mm)
  • Inside diameter: 1" (25.4 mm) tapered
  • Nominal lengths:
    9.75", 10", 19.5", 20", 29.25", 30", 39", 40"
    (24.8, 25.4, 49.5, 50.8, 74.3, 76.2, 99.1, 101.6 cm)
  • Media: Microfiberglass/Phenolic Resin
  • Core: Tin Coated Steel
  • Outer Sleeve: Cotton
  • Micron rating: 0.5, 1, 5, 10, 25, 50, 75, 100, 150 µm
  • Maximum operating temperature:*
    150 PSID @ 200°F (10 bar 93°C)
    50 PSID @ 375°F (3.4 bar 190°C)
  • Recommended change-out Pressure: 35 PSID (2.4 bar)

*Always check compatibility with the specific process fluid at the specific application temperature.

  • Paints
  • Printing Inks
  • Emulsion
  • Resins
  • Oils
  • Petroleum Products
  • Chemical coatings
  • Adhesives

Do you know that change that the improper selection of filtration rating (micron size) can either degrade your product quality or increase your process cost due to frequent change of cartridges?

To select the right filtration rating ( micron size) of the filter or to improve the efficiency of the process, contact our sales team.
