Compressed Air Line Filter

Compressed air is mainly contaminated by dirt, water and oil which can give trouble in the operation of plant and machinery. We offer Air Treatment filters based on your application requirement to achieve suitable Air cleanliness Class. Our product offering includes Water Condensate separator, Micro filter, fine filter and Activated carbon filter to achieve clean & dry air . The water condensate separator works on the principle of mechanical separation to remove free and emulsified water from an air stream. The coalescing and depth filtration phenomena help achieve clean air from Micro and Fine filter. The filters we offer meet the specification as per requirements of ISO 8573-1: international standard specifying compressed air quality classes. Compressed Air line filters that we supply are mainly classified as below.

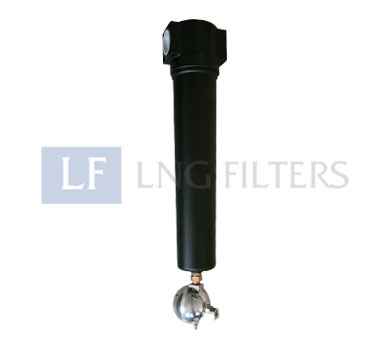

Water Condensate Separator Remove Bulk liquid contamination from compressed air
Micro Filter – 0.1 micron For Achieving Particle Class:2, Oil Content Class:2
Fine Filter – 0.01 micron For achieving Particle Class:1, Oil content Class:1
Activated Carbon Filter For Achieving Oil Content class: 0-1
  • Meets specification as per ISO 8573-1
  • High liquid removal efficiencies at all flow conditions
  • Low pressure losses for low operational costs
  • Suitable for variable flow compressors
  • Low maintenance
  • Remove 0.01 micron particles of oil, water, and dirt from compressed air

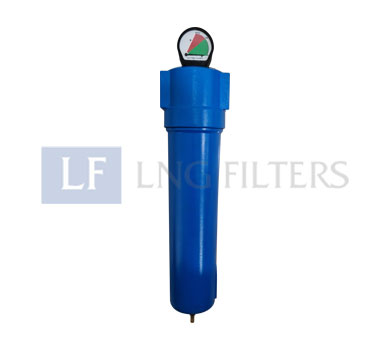

  • Pressure Indicator to monitor life of filter element
  • Inline design

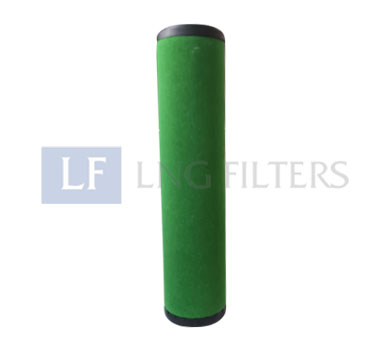

  • Easy change-out of Filter element
  • Operating Pressure: 0 to 16 bar(g)
  • Operating temperature: 1.5 to 65°C
  • Material of Filter Housing: Aluminum
  • Various Model for Air Flow Rate of 35 CFM to 1620 CFM
  • Female Threaded Connection – 3/8” to 3” (Size depends on flow rate)
  • Pharmaceutical
  • Automotive
  • Food and Beverage
  • Automotive
  • Electronics
  • Chemical
  • General Industrial Application
