QXL Series Filter Cartridges

PP Pleated Filter Cartridge for Ink, Slurries and Coatings

With its extra-loft, extra-life depth filter configuration, the QXL is designed for the filtration of industrial solutions containing agglomerated particles and gels or with high viscosity. Consistent absolute retention performance is achieved throughout the pleated, layered microfiber matrix. The stateof- the-art, optimized structure provides significantly higher flow rates and throughputs than cylindrical melt blown filters.

Download Brochure

Authorised Dealer Of Graver Technologies, USA

Features and Benefits
Certifications
Typical Applications
Product Specifications
Dimensions
Operating Parameters
Performance Specifications
Removal Efficiency

Hybrid pleated depth construction combines graded pore structure with high surface area.
Constructed entirely of polypropylene — Compatible with a broad range of solutions and chemicals
Optimized pleat configuration — Provides the ideal combination of retention, flow rate and throughput
Excellent gel and agglomerated particle retention reduces defects
Available in common end cap configurations — Retrofits easily into most filter housings

USP Class VI: Meets USP Class VI Biological Test for Plastics.
FDA Listed Materials: All materials comply with FDA Title 21 of the Code of Federal Regulations Sections 174.5, and 177.1520, as applicable for food and beverage contact.
European Directive for Direct Food Contact: European Regulation No. 1935/2004 and European Regulation 10/2011: Tested for migration behavior and is suitable for contact with all kinds of foodstuffs with minimal rinse-up. Data available upon request.

CMP P-O-U and Bulk Slurries
Adhesives
Paints
Beverages
Coatings
Inks

Media: Polypropylene
Core, Cage, End Caps: Polypropylene Gaskets/O-Rings: Buna-N, EPDM, Silicone, Teflon Encapsulated Viton (O-Rings only), Teflon (gaskets), Viton
Micron rating: 0.45, 1, 3, 5, 10, 20, 40 μm

Nominal lengths:

5"	9.75"	10"	19.5"	20"	29.25"	30"	39"	40"
12.7	24.8	25.4	49.5	50.8	74.3	76.2	99.1	101.6 cm

Outside diameter: 2.7" (6.86 cm)
Inside diameter: 1.0" (2.54 cm)

Maximum operating temperature: 176°F (80°C)
Maximum differential pressure:
75 psid @ 70°F (5.2 bar @ 21°C)
30 psid @ 176°F (2.0 bar @ 80°C)
Maximum reverse pressure: 40 psid @ 70°F (2.8 bar @ 21°C)
Recommended change-out pressure: 35 psid (2.4 bar)

Cartridges may be autoclaved for 30 minutes at 250°F (121°C) under no end load conditions. Cartridges fitted with steam insert may be steamed for at least 10 30-minute cycles @ 275°F (135°C) not to exceed 3 psid (0.21 bar).

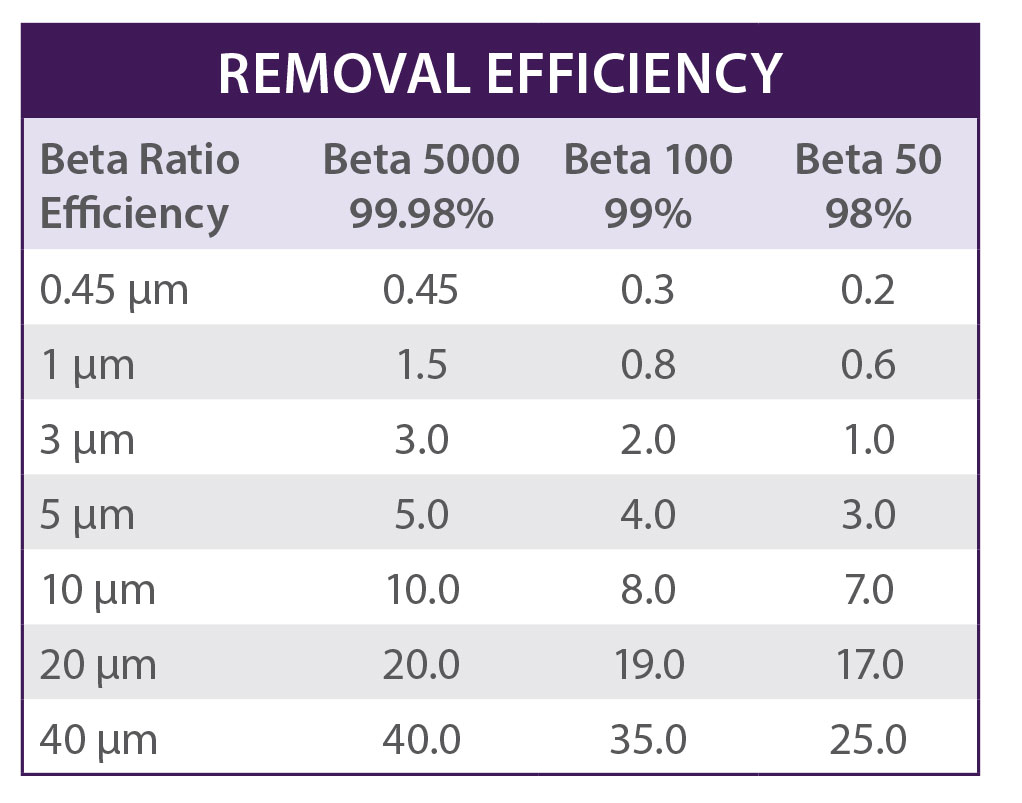

Testing was conducted using the single-pass test method, water at 2.5 gpm/10" cartridge. Contaminants included latex beads, coarse and fine test dust. Removal efficiencies were determined using dual laser source particle counters.

Beta Ratio

Upstream particle counts

Downstream particle counts
