QMA Series Filter Cartridges

PP Pleated Absolute (Beta 5000) filter cartridge for High Performance

This filter is constructed with a high surface area melt blown polypropylene media for low initial pressure drop, high dirt holding capacity, and high efficiency performance.

Download Brochure

Authorised Dealer Of Graver Technologies, USA

Features and Benefits
Certifications
Typical Applications
Product Specifications
Dimensions
Operating Parameters
Performance Specifications

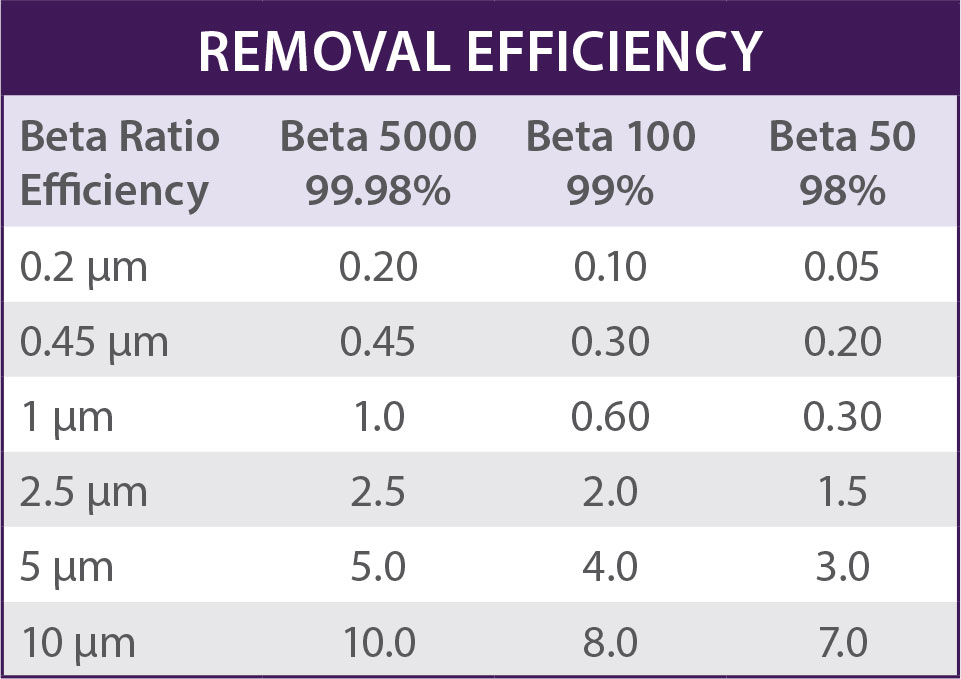

Removal Efficiency

Micron ratings from 0.2 to 20 μm — broad application range
“Absolute” Efficiency — rated at 99.98% (Beta 5000
High surface area — high flow rate, and long service life — minimize maintenance cost
Fixed pore construction — resists dirt unloading at maximum differential pressure
Polypropylene construction — inert to many process fluids
Various gasket/O-ring materials — compatible with many fluids
Heavy duty molded cage — high structural strength
Highly consistent melt blown media for consistent performance

USP Class VI: Meets USP Class VI Biological Test for Plastics
FDA Listed Materials: All materials comply with FDA Title 21 of the Code of Federal Regulations Sections 174.5, and 177.1520, as applicable for food and beverage contact
European Directive for Direct Food Contact: European Regulation No. 1935/2004 and European Regulation 10/2011: Tested for migration behavior and is suitable for contact with all kinds of foodstuffs with minimal rinse-up. Data available upon request.

Food & beverage
Bottled water
Process water
Aqueous solutions
Pharmaceuticals
RO Prefilters
Chemicals
Cosmetics
Inks

Media: Polypropylene
Gaskets/O-Rings: Buna-N, EPDM, Silicone, Teflon Encapsulated Viton (O-Rings only), Teflon (gasket only), Viton
Micron rating: 0.2, 0.45, 1, 2.5, 5, 10 μm

Nominal lengths:

5"	9.75"	10"	20"	30"	40"
12.7	24.8	25.4	50.8	76.2	101.6 cm

Outside diameter: 2.7" (6.86 cm)
Inside diameter: 1.0" (2.54 cm)
Surface Area: up to 7.0 ft2

Maximum operating temperature: 176°F (80°C)
Maximum differential pressure:
75 psid @ 70°F (5.2 bar @ 21°C)
30 psid @ 176°F (2.0 bar @ 80°C)
Maximum reverse pressure: 40 psid @ 70°F (2.8 bar @ 21°C)
Recommended change-out pressure: 35 psid (2.4 bar)

Cleaning/Sanitization: Compatible with most common chemical cleaning, sanitizing and sterilizing agents and with pH range from 1–14. Consult factory for specific compatibility information. Cartridge will withstand hot water at 176°F (80°C) at 5 psid (0.35 bar) for 30 minutes
Steam/Autoclave: Cartridges may be autoclaved for 30 minutes at 250 °F(121°C) under no end load conditions. Cartridges fitted with steam insert may be steamed for at least 10 thirty minute cycles @ 275°F (135°C) not to exceed 3 psid (0.21 bar).

Testing was conducted using the single-pass test method, water at 2.5 gpm/10" cartridge. Contaminants included latex beads, coarse and fine test dust. Removal efficiencies were determined using dual laser source particle counters.

Beta Ratio

Upstream particle counts

Downstream particle counts
