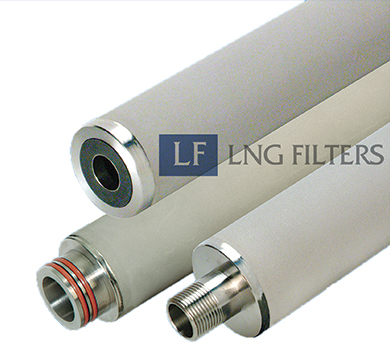

Cleanable metallic filter cartridges

Cleanable metallic filter cartridges

The Stainless-Steel cartridges are designed for microfiltration applications with extreme temperature ranges and differential pressure. These cartridges have stable pore size distribution under higher differential pressure. It can be cleaned mechanically or chemically to allow cartridge reuse. The SS cartridge exhibits almost no extractables under rigorous service condition which allows it to be used for critical process filtration in pharmaceutical, food and beverage industries.

  • Cylindrical Metal Mesh Filter Cartridges
  • Pleated Metal Mesh Filter Cartridges
  • Sintered Metal Powder Filter Cartridges
  • Suitable for High temperature service
  • No media migration
  • Higher throughput
  • Higher differential pressure withstand capacity
  • Regenerable
  • High dirt holding capacity
  • Bubble Point test to ensure filter integrity
  • Performance validation available as per ASTM F 795 -88
  • Diameter: Ø 2.5” (Customize size available)
  • Length: 10”, 20”, 30”, 40” (Customize size available)
  • Micron rating: 0.2, 0.45, 1, 3, 5, 10, 20, 50 µm and more
  • Operating Temperature : Depends upon material selection
  • MOC : Stainless Steel, Galvanized Iron, Bronze (Sintered)
  • Seal Material : EPDM, Viton PTFE, Neoprene, Silicon
  • Double End Open
  • 226 O-ring with Bayonet/Flat design
  • 222 O-ring with Bayonet/Flat design
  • NPT/BSP connection
  • Pharmaceuticals
  • Food and beverages
  • Chemicals
  • Dyes
  • Paints
  • Polymer
  • Paper and Pulp
  • Cement
  • Power Plant

To know more technical details i.e Flow rate, Pressure Drop Curves and suitability with your process, please contact us for more details.
