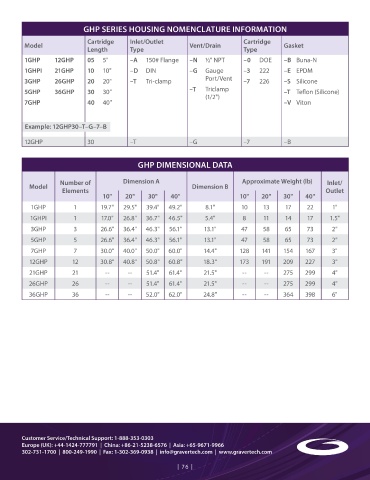

GHP SERIES HOUSING NOMENCLATURE INFORMATION

Cartridge Inlet/Outlet Cartridge
Model Vent/Drain Gasket
Length Type Type
1GHP 12GHP 05 5" –A 150# Flange –N 1/2" NPT –0 DOE –B Buna-N
FILTR ATION | SEPAR ATION | PURIFICATION 1GHPI 21GHP 10 10" –D DIN –G Gauge –3 222 –E EPDM
3GHP 26GHP 20 20" –T Tri-clamp Port/Vent –7 226 –S Silicone
5GHP 36GHP 30 30" –T Triclamp –T Teflon (Silicone)
(1/2")
GHP Series 7GHP 40 40" –V Viton
™

Filter Housings Example: 12GHP30–T–G–7–B

12GHP 30 –T –G –7 –B
High-Purity Vessels

GHP DIMENSIONAL DATA

The GHP Series filter housings are constructed of 316L stainless steel Model Number of Dimension A Dimension B Approximate Weight (lb) Inlet/
and engineered using 3A standards for filtration applications requiring Elements Outlet
Product Specifications high purity production streams Design characteristics minimize hold up 10" 20" 30" 40" 10" 20" 30" 40"
Materials: volumes, provide for easy draining and optimized cleanability External 1GHP 1 19 7" 29 5" 39 4" 49 2" 8 1" 10 13 17 22 1"
316L Stainless Steel surfaces mechanically polished and internal surface is acid washed for a 1GHPI 1 17 0" 26 8" 36 7" 46 5" 5 4" 8 11 14 17 1 5"
Mechanical Polish: consistent, easy care finish
External Surfaces: 3GHP 3 26 6" 36 4" 46 3" 56 1" 13 1" 47 58 65 73 2"
32 RA FEATURES & BENEFITS 5GHP 5 26 6" 36 4" 46 3" 56 1" 13 1" 47 58 65 73 2"
Internal Surfaces: • Durable 316L stainless steel for corrosion resistance
25 RA 7GHP 7 30 0" 40 0" 50 0" 60 0" 14 4" 128 141 154 167 3"
• V-band clamp or swing bolt for quick and easy
Inlet/Outlet Style: 12GHP 12 30 8" 40 8" 50 8" 60 8" 18 3" 173 191 209 227 3"
Tri-clamp, ANSI Flange, DIN cartridge changeouts
• Accepts 5", 10", 20", 30"and 40" 21GHP 21 -- -- 51 4" 61 4" 21 5" -- -- 275 299 4"
Standard Configuration cartridges with DOE, 222/226 GHP DIMENSIONAL 26GHP 26 -- -- 51 4" 61 4" 21 5" -- -- 275 299 4"
configuration options GHP Series Filter Housing
1 Round: DRAWING 36GHP 36 -- -- 52 0" 62 0" 24 8" -- -- 364 398 6"
"T" Style: 1" Tri-clamp, legs • Accommodates up to
In-Line: 1 5" Tri-clamp 2 3/4" OD cartridges
1-1/2'' TRICLAMP
3 & 5 Round Clamp: Dual Clamp NOZZLE w-1/2''
TRICLAMP SIDE
Closure, 2" Inlet/Outlet, Legs TYPICAL APPLICATIONS OUTLET
7 & 12 Round Swing Bolt Closure: • Ultrapure Chemicals
3" Inlet/Outlet, Legs, Handles • Ultrapure Water
21 & 26 Round Swing Bolt Closure: • Wine/Beer
4" Inlet/Outlet, Legs, Handles &
Eye-bolt lift sockets • Bottled Water CARTRIDGE
FILTERS
36 Round Swing Bolt Closure: • Vaccines "A" REF
6" Inlet/Outlet, Legs, Handles • Diagnostics
& Eye-bolt lift sockets • Edible Oils
222 CODE 8
• Tank Vents OR 226 CODE 7
Operating Parameters MACHINED O-RING
SEPARATOR PL SEALS
Maximum operating pressure:
Design pressures limits of 140 PSIG
(9 8 bar) @ 212°F (100°C) OUTLET INLET
Recommended operating pressure: (2) DRAINS
Limits of 100 PSIG (6 8 bar) Customer Service/Technical Support: 1-888-353-0303
@ 165°F (74°C) "B" REF Europe (UK): +44-1424-777791 | China: +86-21-5238-6576 | Asia: +65-9671-9966
