MBC NOMENCLATURE INFORMATION

                                                                                                                                   Filter     Retention         Nominal            End                                     Gasket
                                                                                                                                   Type       Rating (microns) Length (inches)     Configuration                           or O-Ring

                                                                                                                                   MBC        1        20       –5        –29.25 P       Double Open End (Hard Endcaps)    B   Buna-N
         FILTR ATION   |  SEPAR ATION   |  PURIFICATION                                                                            Series     3        30       –9.75     –30      P2    226/Flat Single Open End          E   EPDM
                                                                                                                                              5        50       –10       –39      P3    222/Flat Single Open End          N   None
                                                                                                                                              10       75       –19.5     –40      P6    Self-Seal Spring on One End       S   Silicone

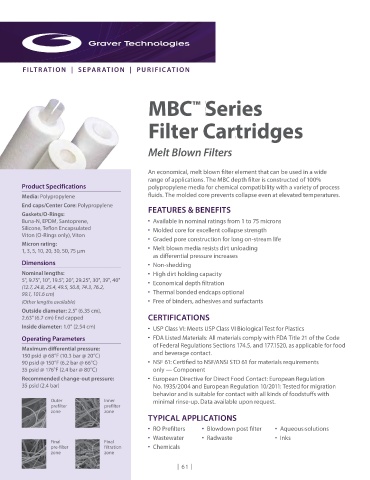

                                                  MBC  Series                                                                                                   –20                P7    226/Fin Single Open End           T   Teflon encap
                                                                 ™
                                                                                                                                                                                                                               Viton (O-Rings
                                                                                                                                                                                   P8
                                                                                                                                                                                         222/Fin Single Open End
                                                  Filter Cartridges                                                                                                                PX    Extended Core                     V   only)
                                                                                                                                                                                                                               Viton
                                                                                                                                                                                         None (Cut Ends)
                                                                                                                                                                                   N
                                                                                                                                                                                   DBG Direct Bond Santoprene Gaskets
                                                  Melt Blown Filters                                                                                                               AM    Single Open End, Internal O-Ring
                                                                                                                                    Example: MBC 10–20NN

                                                  An economical, melt blown filter element that can be used in a wide              MBC        10                –20                N                                       N
                                                  range of applications  The MBC depth filter is constructed of 100%
        Product Specifications                    polypropylene media for chemical compatibility with a variety of process
        Media: Polypropylene                      fluids  The molded core prevents collapse even at elevated temperatures                            MBC FLOW RATE
        End caps/Center Core: Polypropylene       FEATURES & BENEFITS
        Gaskets/O-Rings:                                                                                                             Typical Flow Rate Clean Water at Ambient Temperature
        Buna-N, EPDM, Santoprene,                 •   Available in nominal ratings from 1 to 75 microns                                                (per 10" cartridge)
        Silicone, Teflon Encapsulated             •  Molded core for excellent collapse strength                                          BAR  PSI
        Viton (O-Rings only), Viton               •  Graded pore construction for long on-stream life                                    0 069  1 0                                1 µm
                                                                                                                                                                                   3 µm
        Micron rating:                                                                                                                   0 055  0 9                                5 µm
                                                                                                                                              0 8
        1, 3, 5, 10, 20, 30, 50, 75 µm            •   Melt blown media resists dirt unloading                                                 0 7                                  10 µm
                                                    as differential pressure increases                                                   0 041  0 6                                20 µm
        Dimensions                                •  Non-shedding                                                                       Differential Pressure  0 027  0 5          30 µm
                                                                                                                                                                                   50 µm
                                                                                                                                              0 4
        Nominal lengths:                          •  High dirt holding capacity                                                               0 3                                  75 µm
        5", 9 75", 10", 19 5", 20", 29 25", 30", 39", 40"    •  Economical depth filtration                                              0 014  0 2
                                                                                                                                              0 1
        (12.7, 24.8, 25.4, 49.5, 50.8, 74.3, 76.2,                                                                                          0  0
        99.1, 101.6 cm)                           •  Thermal bonded endcaps optional                                                             0       2       4        6       8 USGPM
        (Other lengths available)                 •  Free of binders, adhesives and surfactants                                                  0       7 6     15 1    22 7   30 3 LPM
        Outside diameter: 2 5" (6 35 cm),                                                                                            For liquids other than water, multiply pressure drop by the fluid viscosity in centipoise
        2 63" (6 7 cm) End capped                 CERTIFICATIONS
        Inside diameter: 1 0" (2 54 cm)           •   USP Class VI: Meets USP Class VI Biological Test for Plastics
        Operating Parameters                      •   FDA Listed Materials: All materials comply with FDA Title 21 of the Code
                                                    of Federal Regulations Sections 174 5, and 177 1520, as applicable for food
        Maximum differential pressure:
        150 psid @ 68°F (10 3 bar @ 20°C)           and beverage contact
        90 psid @ 150°F (6 2 bar @ 66°C)          •   NSF 61: Certified to NSF/ANSI STD 61 for materials requirements
        35 psid @ 176°F (2 4 bar @ 80°C)            only — Component
        Recommended change-out pressure:          •   European Directive for Direct Food Contact: European Regulation
        35 psid (2 4 bar)                           No  1935/2004 and European Regulation 10/2011: Tested for migration
                                                    behavior and is suitable for contact with all kinds of foodstuffs with
                  Outer            Inner            minimal rinse-up  Data available upon request
                  prefilter        prefilter
                  zone             zone
                                                  TYPICAL APPLICATIONS

                                                  •  RO Prefilters  •  Blowdown post filter  •  Aqueous solutions
                                                  •  Wastewater     •  Radwaste             •  Inks                                Customer Service/Technical Support: 1-888-353-0303
                  Final            Final                                                                                           Europe (UK): +44-1424-777791  |  China: +86-21-5238-6576  |  Asia: +65-9671-9966
                  pre-filter       filtration     •  Chemicals
                  zone             zone                                                                                            302-731-1700  |  800-249-1990  |  Fax: 1-302-369-0938  |  info@gravertech.com  |  www.gravertech.com
