QMC NOMENCLATURE INFORMATION

Filter Retention Rating Nominal Length End Gasket
Type (microns) (inches) Configuration or O-Ring

QMC 0.1 1 –5 –29.25 1 P Double Open End B Buna-N
FILTR ATION | SEPAR ATION | PURIFICATION Series 0.2 3 –9.75 1 –30 P2 226/Flat Single Open End E EPDM
0.4 5 –10 –39 1 P3 222/Flat Single Open End S Silicone
0.6 10 –19.5 1 –40 P7 226/Fin Single Open End T Teflon encap
QMC Series –20 P8 222/Fin Single Open End Viton (O-Rings
™
only)2
Extended Core
PX

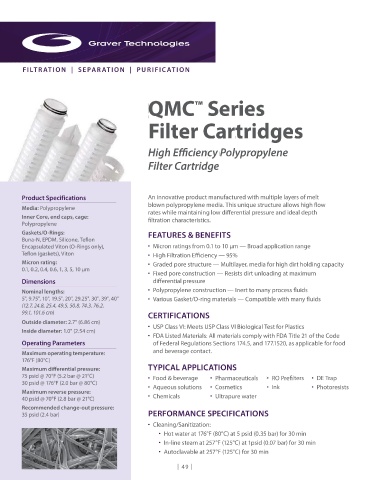

Filter Cartridges Example: QMC 1–20P3V AM Single Open End, Internal O-Ring T Teflon Gasket
Viton
V
Double Open End, Internal O-Ring
NPC
High Efficiency Polypropylene QMC 1 –20 P3 V
1 Available only for DOE (P) configuration 2 Not available in AM style
Filter Cartridge
QMC FLOW RATE REMOVAL EFFICIENCY

Typical Flow Rate Clean Water at Ambient Temperature Beta Ratio Beta 100 Beta 20
Product Specifications An innovative product manufactured with multiple layers of melt (per 10" cartridge) Efficiency 99% 95%
blown polypropylene media This unique structure allows high flow
Media: Polypropylene BAR PSI 0 1 µm 0 8 0 1
Inner Core, end caps, cage: rates while maintaining low differential pressure and ideal depth 0 14 2 1 0 2 µm 1 0 0 2
Polypropylene filtration characteristics 0 12 1 8 0 1 µm
Gaskets/O-Rings: FEATURES & BENEFITS 0 10 1 5 0 4 µm 2 0 0 4
Buna-N, EPDM, Silicone, Teflon Differential Pressure 0 08 1 2 0 2 µm 0 6 µm 3 0 0 6
0 4 µm
Encapsulated Viton (O-Rings only), • Micron ratings from 0 1 to 10 μm — Broad application range 0 06 0 9 0 6 µm
Teflon (gaskets), Viton • High Filtration Efficiency — 95% 0 04 0 6 1 µm 1 µm 6 0 1 0
3, 5 µm
Micron rating: • Graded pore structure — Multilayer, media for high dirt holding capacity 0 02 0 3 10 µm 3 µm 14 0 3 0
0 1, 0 2, 0 4, 0 6, 1, 3, 5, 10 µm 0 0
• Fixed pore construction — Resists dirt unloading at maximum 0 2 4 6 8 USGPM 5 µm 17 0 5 0
Dimensions differential pressure 0 7 6 15 1 22 7 30 3 LPM 10 µm 25 0 10 0
Nominal lengths: • Polypropylene construction — Inert to many process fluids For liquids other than water, multiply pressure drop by the fluid viscosity in centipoise
5", 9 75", 10", 19 5", 20", 29 25", 30", 39", 40" • Various Gasket/O-ring materials — Compatible with many fluids Upstream particle counts
(12.7, 24.8, 25.4, 49.5, 50.8, 74.3, 76.2, Beta Ratio = Downstream particle counts
99.1, 101.6 cm) CERTIFICATIONS
Outside diameter: 2 7" (6 86 cm) • USP Class VI: Meets USP Class VI Biological Test for Plastics The micron ratings shown at various efficiency and beta ratio value levels were determined through laboratory testing, and can be used as a guide for selecting cartridges
Inside diameter: 1 0" (2 54 cm) and estimating their performance Under actual field conditions, results may vary somewhat from the values shown due to the variability of filtration parameters
• FDA Listed Materials: All materials comply with FDA Title 21 of the Code Testing was conducted using the single-pass test method, water at 2 5 gpm/10" cartridge Contaminants included latex beads, coarse and fine test dust Removal
Operating Parameters of Federal Regulations Sections 174 5, and 177 1520, as applicable for food efficiencies were determined using dual laser source particle counters
Maximum operating temperature: and beverage contact
176°F (80°C)
Maximum differential pressure: TYPICAL APPLICATIONS
75 psid @ 70°F (5 2 bar @ 21°C) • Food & beverage • Pharmaceuticals • RO Prefilters • DE Trap
30 psid @ 176°F (2 0 bar @ 80°C) • Aqueous solutions • Cosmetics • Ink • Photoresists
Maximum reverse pressure:
40 psid @ 70°F (2 8 bar @ 21°C) • Chemicals • Ultrapure water
Recommended change-out pressure:
35 psid (2 4 bar) PERFORMANCE SPECIFICATIONS
• Cleaning/Sanitization:
• Hot water at 176°F (80°C) at 5 psid (0 35 bar) for 30 min
Customer Service/Technical Support: 1-888-353-0303
• In-line steam at 257°F (125°C) at 1psid (0 07 bar) for 30 min Europe (UK): +44-1424-777791 | China: +86-21-5238-6576 | Asia: +65-9671-9966
• Autoclavable at 257°F (125°C) for 30 min 302-731-1700 | 800-249-1990 | Fax: 1-302-369-0938 | info@gravertech.com | www.gravertech.com
