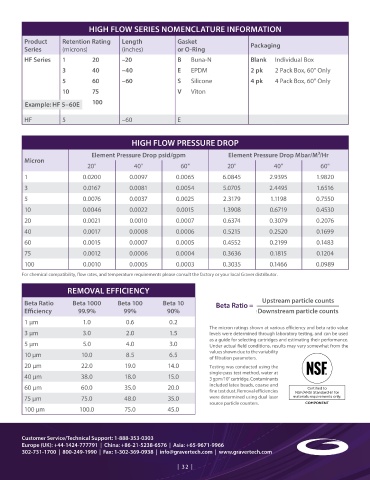

Page 37 - Filter Cartridges Product Catalogue

HIGH FLOW SERIES NOMENCLATURE INFORMATION

Product Retention Rating Length Gasket
Series (microns) (inches) or O-Ring Packaging

HF Series 1 20 –20 B Buna-N Blank Individual Box
FILTR ATION | SEPAR ATION | PURIFICATION 3 40 –40 E EPDM 2 pk 2 Pack Box, 60" Only
5 60 –60 S Silicone 4 pk 4 Pack Box, 60" Only
10 75 V Viton
High Flow Series Example: HF 5–60E 100

Filter Cartridges HF 5 –60 E

HIGH FLOW PRESSURE DROP
Large Geometry Pleated Filters Element Pressure Drop psid/gpm Element Pressure Drop Mbar/M3/Hr

for High Flow Micron 20" 40" 60" 20" 40" 60"

1 0 0200 0 0097 0 0065 6 0845 2 9395 1 9820
Graver High Flow Series filters feature a larger geometry to handle high- 3 0 0167 0 0081 0 0054 5 0705 2 4495 1 6516
er flows with fewer filter elements The result is much faster, easier filter
Product Specifications changeouts In addition, the inside to outside flow allows for excellent dirt 5 0 0076 0 0037 0 0025 2 3179 1 1198 0 7550
Media/Support/Cage: Polypropylene holding capacity, extending the time between filter changeouts Filter hous- 10 0 0046 0 0022 0 0015 1 3908 0 6719 0 4530
End Caps: Polypropylene ings are also available and because of the filter's high flow and dirt holding 20 0 0021 0 0010 0 0007 0 6374 0 3079 0 2076
Gaskets/O-Rings: capacity, smaller systems are possible, reducing upfront capital costs
Buna-N, EPDM, Silicone, Viton 40 0 0017 0 0008 0 0006 0 5215 0 2520 0 1699
Micron rating: FEATURES & BENEFITS 60 0 0015 0 0007 0 0005 0 4552 0 2199 0 1483
1, 3, 5, 10, 20, 40, 60, 75, 100 µm • 6" diameter, large geometry for high flow rates 75 0 0012 0 0006 0 0004 0 3636 0 1815 0 1204

Dimensions • Absolute retention ratings from 1 to 100 microns
• Capable of flow rates up to 500 GPM in a single 60" element 100 0 0010 0 0005 0 0003 0 3035 0 1466 0 0989
Nominal lengths:
20" 40" 60" • Inside-out flow retains contaminant even during changeout For chemical compatibility, flow rates, and temperature requirements please consult the factory or your local Graver distributor
50.8 101.6 152.4 cm • Multi layer pleated construction with optimized surface area
Outside diameter: 6 0" (15 2 cm) • Outer cage prevents media extrusion problem experienced with some REMOVAL EFFICIENCY
Surface Area: competitive offerings Beta Ratio Beta 1000 Beta 100 Beta 10 Beta Ratio = Upstream particle counts
24 ft2 (2 2 m2) per 20" element • Unique Quad Seal gasket provides maximum seal integrity Efficiency 99.9% 99% 90% Downstream particle counts
49 ft2 (4 6 m2) per 40" element • Retrofits competitive high flow filter housings
73 ft2 (6 8 m2) per 60" element 1 µm 1 0 0 6 0 2
• Thermally bonded construction The micron ratings shown at various efficiency and beta ratio value
Operating Parameters 3 µm 3 0 2 0 1 5 levels were determined through laboratory testing, and can be used
as a guide for selecting cartridges and estimating their performance
Maximum operating CERTIFICATIONS 5 µm 5 0 4 0 3 0 Under actual field conditions, results may vary somewhat from the
temperature: 176°F (80°C) • FDA Listed Materials: All materials comply with FDA Title 21 of the Code 10 µm 10 0 8 5 6 5 values shown due to the variability
Maximum differential pressure: of Federal Regulations Sections 174 5, and 177 1520, as applicable for food of filtration parameters
75 psid @ 70°F (5 2 bar @ 21°C) and beverage contact 20 µm 22 0 19 0 14 0 Testing was conducted using the
30 psid @ 176°F (2 0 bar @ 80°C) • European Directive for Direct Food Contact: European Regulation 40 µm 38 0 18 0 15 0 single-pass test method, water at
3 gpm/10" cartridge Contaminants
Maximum reverse pressure: No 1935/2004 and European Regulation 10/2011: Tested for migration 60 µm 60 0 35 0 20 0 included latex beads, coarse and
40 psid @ 70°F (2 8 bar @ 21°C) behavior and is suitable for contact with all kinds of foodstuffs with fine test dust Removal efficiencies
Recommended change-out pressure: minimal rinse-up Data available upon request 75 µm 75 0 48 0 35 0 were determined using dual laser
source particle counters
35 psid (2 4 bar) • NSF 61: Certified to NSF/ANSI STD 61 for materials requirements 100 µm 100 0 75 0 45 0
Maximum flow rates : only — Component
*
60" element up to 500 GPM (1892 lpm)
40" element up to 350 GPM (1325 lpm) TYPICAL APPLICATIONS
20" element up to 175 GPM (662 lpm) Customer Service/Technical Support: 1-888-353-0303
* Consult factory for sizing assistance • Water Systems • Food and Beverage Europe (UK): +44-1424-777791 | China: +86-21-5238-6576 | Asia: +65-9671-9966
based on particle loads • Chemicals • Pre RO 302-731-1700 | 800-249-1990 | Fax: 1-302-369-0938 | info@gravertech.com | www.gravertech.com
